Motor Power and Speed Levels: A Technical Guide to Home Treadmills

A home treadmill's motor power rating, expressed in horsepower (HP), sets how much continuous belt load the machine is engineered to carry. Its speed range, expressed in kilometres per hour (km/h), sets which workouts that belt can actually support. Every other specification — deck length, incline type, program count, folding mechanism — either reinforces those two figures or limits them.

This guide explains how to read motor power and speed levels so they map to real household use rather than to a spec sheet. Three models from Ningbo Healthmate Health Technology Co., Ltd. are used as reference points throughout: the HSM-MT19 (1–20 km/h, 2.5 HP, auto-incline), the HSM-MT60 PRO (2.5 HP, 12 programs, auto-incline) and the HSM-T20 (1.5 HP, 1–14 km/h, manual incline). It is written for importers, distributors, brand owners and procurement managers sourcing home fitness equipments for residential markets.

Problem Definition: Why Power and Speed Specs Get Misread

Two treadmills can photograph almost identically and still serve completely different buyers. The difference normally sits in three numbers: motor power, speed range and user weight capacity. When those three are compared in isolation — or when only the HP figure is compared — the specification stops describing the product and starts describing a marketing position.

Three recurring evaluation mistakes appear in treadmill sourcing:

• Matching on HP alone. A 1.5 HP model with a 1–14 km/h range and a 2.5 HP model with a 1–20 km/h range both qualify as "home treadmills", but they are engineered for different session lengths and user weights.
• Ignoring how the motor rating is declared. Motor figures are not always quoted on the same basis across suppliers. The practical answer is to compare like-for-like and to ask for the declared speed range, runway dimensions and maximum user capacity that sit alongside the HP number.
• Treating incline as a cosmetic feature. Manual incline is set before a session; automatic incline changes during a programmed session. For buyers building a product line, that single difference separates two price and feature tiers.

Before a treadmill is judged, the buying question needs to be defined: who uses it, for how long, at what speed, and under what load.

Industry Background: Where Treadmill Demand Sits

Motorized treadmills remain the anchor category of the home fitness market. According to Fortune Business Insights, the global home fitness equipment market was valued at approximately USD 12.88 billion in 2025 and is projected to reach USD 22.99 billion by 2034. Within that total, cardiovascular equipment — treadmills and exercise bikes — holds a 58.89% revenue share.

Dataintelo values the home treadmill segment specifically at USD 5.51 billion in 2025, with motorized models accounting for 58.2% of it. Straits Research estimates the adjacent walking pad (under-desk treadmill) segment at USD 4.9 billion in 2025, a figure driven largely by remote-work habits.

The commercial implication is straightforward: because motorized treadmills dominate the category, motor power and speed range are the specifications that most often decide whether a sourced model fits a distributor's market.

Detailed Solution: How to Evaluate Motor Power and Speed

Reading motor power in bands

Motor power in the Healthmate home treadmill range runs from 0.75 HP to 2.5 HP. The bands behave differently in use:

• 0.75 HP — under-desk and light walking. Used on the HSM-W04L1BL, HSM-W04L2B and HSM-W04M2A walking pads, with speed ranges of 1–6 km/h and 1–10 km/h. These are walking tools, not running machines; the HSM-W04L1BL uses a brushless motor.
• 1.5 HP — compact folding treadmills. The HSM-T20 (1–14 km/h, 6 programs, gross weight 33.5 kg) and the HSM-W09E walking pad (dual speed 1–14 km/h and 1–6 km/h) sit in this band.
• 2.0 HP — mid-range running. The HSM-W08A (1–16 km/h, 16 programs) and the HSM-MT296 (1–20 km/h, 16 programs, 150 kg capacity) belong here.
• 2.5 HP — higher-duty home running. The HSM-MT19 (1–20 km/h, 12 programs, 1300 × 480 mm runway, 150 kg capacity), the HSM-MT60 PRO (12 programs, 1320 × 520 mm runway) and the HSM-MT550 (1–22 km/h, 16 programs) define this band.

The practical rule for buyers: size the motor to the heaviest regular user and the longest typical session, not to the fastest speed on the label. Higher power in the same frame class also tends to come with a longer runway and a higher gross weight — the HSM-MT19 is listed at 77 kg gross and the HSM-MT550 at 91 kg gross, against 33.5 kg for the compact HSM-T20.

Reading speed range in bands

Speed range is where a home treadmill line is actually segmented, and the bands correspond to how the models are positioned in the catalogue:

• 1–6 km/h: under-desk walking pads (HSM-W04L1BL, HSM-W04L2B), designed for desk-side use.
• 1–10 km/h: walking pad with a safety handrail (HSM-W04M2A).
• 1–14 km/h: compact folding treadmills for walking through light jogging (HSM-T20), also available as a dual-speed walking pad (HSM-W09E: 1–14 km/h and 1–6 km/h).
• 1–16 km/h: home walking treadmill with support bar (HSM-W08A).
• 1–20 km/h: full home treadmills for regular running sessions (HSM-MT19, HSM-MT296).
• 1–22 km/h: the top of the current range (HSM-MT550).

A useful check when comparing two quotes is whether the top speed is supported by the rest of the platform: a 1–20 km/h machine such as the HSM-MT19 combines that speed with a 1300 × 480 mm runway and a 150 kg user capacity, while a 1–14 km/h compact such as the HSM-T20 pairs its speed with a 1100 × 400 mm runway and a 33.5 kg gross weight.

Incline: manual or automatic

Incline changes the muscle demand of the same speed setting, which is why it belongs in the same decision as power and speed. In the current range:

• Automatic incline: HSM-MT19, HSM-MT60 PRO, HSM-MT296, HSM-MT550 and HSM-W08A. Incline can be driven by the console and by programmes.
• Manual incline: HSM-T20, HSM-W04L2B and HSM-W04M2A, plus a single-level manual incline on the HSM-W09E walking pad.

For distributors, this is usually the cleanest way to split a range: manual incline for compact, entry-level and space-constrained products; automatic incline for the mid and upper tiers where programme-led training is expected.

Programs and console functions

Program count in the Healthmate line scales with the model tier: 6 programmes on the HSM-T20, HSM-W09E and the W04 walking pad series; 12 programmes on the HSM-MT19 and HSM-MT60 PRO; and 16 programmes on the HSM-MT296, HSM-MT550 and HSM-W08A. All treadmill consoles in the range display speed, distance, time, calories and pulse.

Connected functions also follow the tier. The HSM-MT19 and HSM-MT60 PRO add a massager set with Bluetooth music and APP functions; the HSM-T20 adds Bluetooth music and APP functions; the HSM-MT550 adds wireless charging.

Reference Models: Three Specification Profiles

The three models used as examples in this guide occupy three distinct positions, and reading them side by side is the fastest way to understand how power and speed interact.

HSM-MT19 — the 1–20 km/h reference

The HSM-MT19 is a home-use treadmill for fitness and daily walking, with a 2.5 HP motor and a 1–20 km/h speed range across 12 programmes. It uses a 1300 × 480 mm runway and an overall product size of 1705 × 835 × 1380 mm, with a gross weight of 77 kg and a 150 kg user capacity. Folding uses a hydraulic soft-drop system, and the safety package combines an emergency stop key with an anti-slip belt. Automatic incline, a massager set and Bluetooth music and APP functions are included.

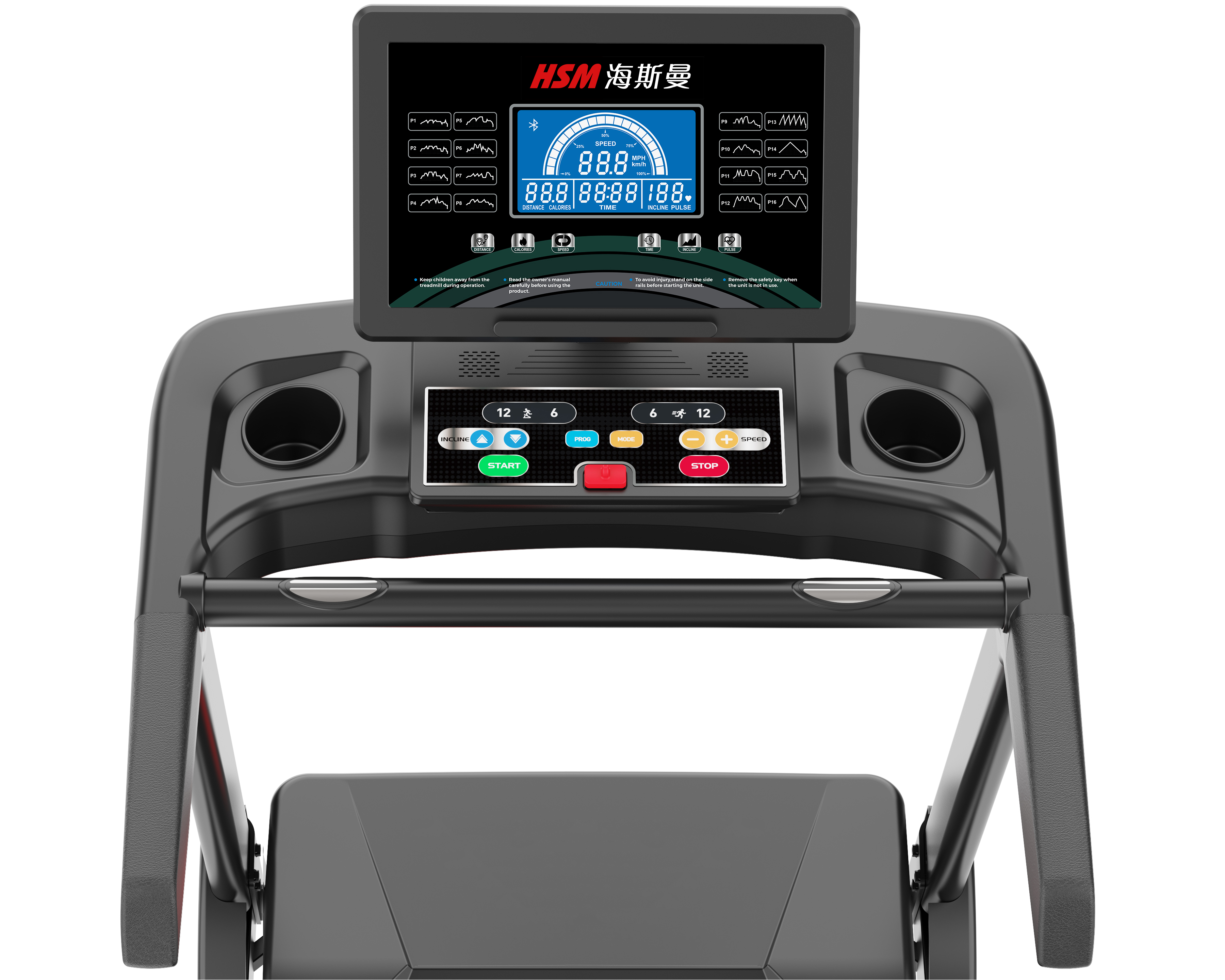

HSM-MT60 PRO — the 2.5 HP reference

The HSM-MT60 PRO is an electric home treadmill positioned for daily exercise. It shares the 2.5 HP motor rating of the HSM-MT19 and offers a wider 1320 × 520 mm runway across 12 programmes, with automatic incline, a massager set, Bluetooth music and APP functions, and a gross weight of 83 kg. Its larger belt area suits buyers targeting households where more than one person trains regularly.

HSM-T20 — the 1.5 HP reference

The HSM-T20 is a compact folding home treadmill with a 1.5 HP motor, a 1–14 km/h speed range and 6 programmes. The runway measures 1100 × 400 mm and the gross weight is 33.5 kg, which keeps the unit in the light and space-saving tier. Incline is manual rather than automatic, and Bluetooth music and APP functions are included as an additional function.

Comparison Table: Home Treadmills by Power and Speed

The table below compares home treadmills and walking pads in the current Healthmate range using published specification data only. Where a figure is not part of the specification set used for this guide, the cell is left blank rather than estimated.

The HSM-MT19 also lists a 150 kg user capacity, matching the HSM-MT296; both are the highest-capacity treadmill platforms in the current range. The HSM-MT550 adds wireless charging, and the HSM-MT19 and HSM-MT60 PRO both include a massager set.

Step-by-Step: Specifying a Home Treadmill

The sequence below turns a vague brief ("a home treadmill for our market") into a specification that can be quoted, sampled and certified.

1. Define the primary user. Write down the heaviest regular user and the longest typical session. This drives motor power and user capacity before anything else.
2. Convert the use case into a speed band. Desk-side walking points to 1–6 km/h or 1–10 km/h; walking with occasional jogging to 1–14 km/h; regular running to 1–20 km/h or above.
3. Size the motor to the band. 0.75 HP for walking pads, 1.5 HP for compact folding treadmills, 2.0 HP for mid-range running, 2.5 HP for higher-duty household running.
4. Decide the incline type. Automatic incline (HSM-MT19, HSM-MT60 PRO, HSM-MT296, HSM-MT550, HSM-W08A) for programme-led training; manual incline (HSM-T20, HSM-W04M2A, HSM-W04L2B) for compact and entry tiers.
5. Check the runway against the speed. A 1–20 km/h machine is normally paired with a longer belt than a 1–14 km/h compact; the HSM-MT19 uses 1300 × 480 mm and the HSM-T20 uses 1100 × 400 mm.
6. Confirm folding, safety and storage. The HSM-MT19 uses a hydraulic soft-drop folding system with an emergency stop key and an anti-slip belt.
7. Match programmes and console features to the tier. 6, 12 or 16 programmes, plus Bluetooth music and APP functions where the model includes them.
8. Verify compliance for the destination market. Certification scope differs between the EU, the UK and North America, and it should be confirmed model by model.
9. Confirm the supply parameters. Minimum order quantity, production lead time, monthly capacity, customization scope and warranty terms.

Use Cases: Matching Power and Speed to Real Households

Small apartments and home offices. The 1.5 HP HSM-T20 with its 1–14 km/h range and manual incline covers walking and light jogging without occupying a full room; the 0.75 HP HSM-W04L1BL under-desk walking pad at 1–6 km/h is the desk-side option when the machine must disappear under a workstation.

Family daily cardio. A 2.5 HP machine with a wider belt is the practical choice when two or more people use the treadmill on the same day. The HSM-MT60 PRO pairs 2.5 HP with a 1320 × 520 mm runway and 12 programmes, including automatic incline.

Regular running households. The 1–20 km/h band with automatic incline and a 150 kg capacity — HSM-MT19 and HSM-MT296 — supports longer running sessions and heavier users, and the hydraulic soft-drop folding on the HSM-MT19 protects the fold mechanism in daily use.

Distributor assortments. A practical range building block is one entry walking pad, one compact 1.5 HP folding treadmill, one 2.0–2.5 HP running model and one automatic-incline flagship. That structure matches the current Healthmate ladder and keeps price tiers from overlapping.

Compliance Constraints That Come With Higher Power

Higher motor power and automatic incline introduce both electronic and mechanical compliance obligations. Treadmill buyers should treat certification as part of the specification, not as paperwork that follows the order.

For the EU market, the Home-use Treadmill model HSM-MT19 holds CE certification number CE-4084-110525, issued by ECES ULUSLARARASI SERTİFİKASYON MUAYENE LABORATUVAR EĞİTİM HİZMETLERİ SAN. ve TİC. LTD. ŞTİ. Applicable standards include EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021/AC:2022-01, EN 60335-1:2012 + A11:2014 + A13:2017 + A2:2019 + A14:2019, and EN 62233:2008. The same model additionally holds CE EMC Directive 2014/30/EU certification number ENB2601230270E00101C issued by EMTEK (Ningbo) Co., Ltd., and a verification of conformity under EN ISO 20957-1:2024 and EN 957-6:2010+A1:2014 covering the motorized treadmill range.

Radio equipment obligations apply where console connectivity is included: the HSM-MT19 is certified under RED with certificate number ENB2512300229W00101C issued by EMTEK (NINGBO) CO., LTD., with EN 50663:2017 among the applicable standards. For the UK market, the same model holds UKCA certification number ENB2507150046E00501C issued by EMTEK (NINGBO) CO., LTD., compliant with BS EN IEC 55014-1:2021.

For North America, the treadmill platform is covered by an ETL Authorization to Mark, certificate number 150800030HZH-001, issued by Intertek Testing Services Ltd. Zhejiang, under UL 1647:2015 Ed.6+R and CSA C22.2#68:2018 Ed.8+U1. The authorization applies across the treadmill model range, including the HSM-MT19, HSM-MT60 PRO, HSM-T20, HSM-MT296, HSM-MT550, HSM-W04L2B, HSM-W04L1BL, HSM-W04M2A, HSM-W08A and HSM-W09E.

Independent of any single certificate, motorized treadmills are commonly evaluated against ASTM F2115-19 in the USA and ISO 20957-6 / EN 957-6 in the EU for safety and performance. Buyers should confirm that the model quoted, the market and the certificate scope line up — particularly for Bluetooth and APP-equipped models, where RED-type requirements enter the picture.

Manufacturing and Supply Context

Ningbo Healthmate Health Technology Co., Ltd. is a manufacturer and supplier of home fitness equipment and healthcare products, founded in 2007, operating from a 100,000 m² factory in Ninghai, Ningbo, China, with 850 employees, a 38-engineer R&D team and an annual output of 700,000 units. Approximately 80% of production is exported to Europe, the USA, Japan, Korea, India, the Middle East and South America.

For treadmill programmes specifically, the published capability data lists OEM/ODM production with customization across colour, logo, voltage and plug type, a monthly capacity of 8,000 pcs, a minimum order quantity of 100 pcs, a production lead time of 35–40 days, 100% testing with third-party inspection, and a one-year warranty on damaged parts.
